AT Secondary Shaft (L4) for 2003 Honda Accord

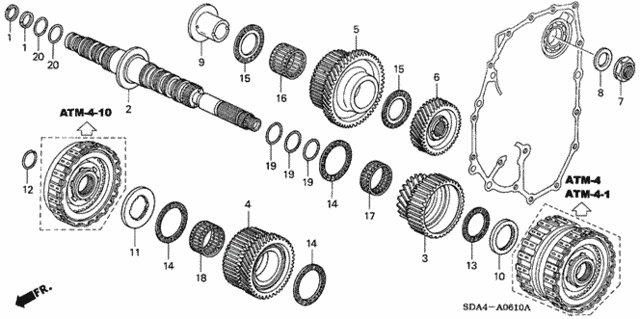

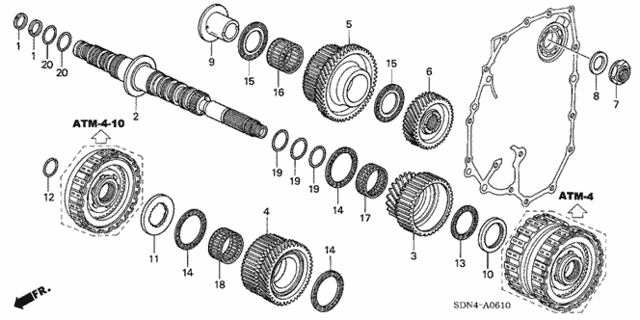

Diagram 1 1. RING, SEALING (29MM) Diagram 2 2. RING, SEALING (29MM)
AT Secondary Shaft (L4) for 2003 Honda Accord #0
1
1
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
14
14
14
14
15
15
15
15
16
16
17
17
18
18
19
19
19
19
19
19
20
20
20
20
No.
Part # / Description / Price
Price
1
22814PRP003 - Transmission - Automatic: RING, SEALING (29MM) for Honda Image
Ring, Sealing (29MM)
22814-PRP-003
Honda Honda
MSRP $16.34
$11.28
MSRP $16.34
$11.28
2
23230PRP020 - Transmission - Automatic: SHAFT, SECONDARY for Honda Image
Shaft, Secondary
23230-PRP-020
Honda Honda
MSRP $414.24
$273.39
MSRP $414.24
$273.39
3
23411PRP010 - Transmission - Automatic: GEAR, SECONDARY SHAFT LOW for Honda Image
Gear, Secondary Shaft Low
23411-PRP-010
Honda Honda
MSRP $231.12
$152.54
MSRP $231.12
$152.54
4
23431RCL000 - Transmission - Automatic: GEAR, SECONDARY SHAFT SECOND for Honda Image
Gear, Secondary Shaft Second
23431-RCL-000
Honda Honda
MSRP $244.09
$161.10
MSRP $244.09
$161.10
5
23455RCL000 - Transmission - Automatic: GEAR, SECONDARY SHAFT THIRD for Honda Image
Gear, Secondary Shaft Third
23455-RCL-000
Honda Honda
View Details
View Details
7
90201PRP000 - Transmission - Automatic: NUT, FLANGE (24MM) (LEFT HAND THREAD) for Honda Image
Nut, Flange (24MM) (Left Hand Thread)
90201-PRP-000
Honda Honda
MSRP $11.80
$8.14
MSRP $11.80
$8.14
8
90402P0Z000 - Transmission - Automatic: WASHER, SPRING (24MM) for Honda Image
Washer, Spring (24MM)
90402-P0Z-000
Honda Honda
MSRP $26.16
$18.06
MSRP $26.16
$18.06
9
90443PRP000 - Transmission - Automatic: COLLAR (27X37X44) for Honda Image
Collar (27X37X44)
90443-PRP-000
Honda Honda
MSRP $53.21
$36.08
MSRP $53.21
$36.08
10
90503RCT000 - Transmission - Automatic: WASHER, THRUST (40X51.5X4.80) for Honda Image
Washer, Thrust (40X51.5X4.80)
90503-RCT-000
Honda Honda
MSRP $19.79
$13.65
MSRP $19.79
$13.65
10
90506RCT000 - Transmission - Automatic: WASHER, THRUST (40X51.5X4.95) for Honda Image
Washer, Thrust (40X51.5X4.95)
90506-RCT-000
Honda Honda
MSRP $19.79
$13.65
MSRP $19.79
$13.65
10
90504PRP000 - Transmission - Automatic: WASHER, THRUST (40X51.5X4.85) for Honda Image
Washer, Thrust (40X51.5X4.85)
90504-PRP-000
Honda Honda
MSRP $19.72
$13.60
MSRP $19.72
$13.60
10
90507PRP000 - Transmission - Automatic: WASHER, THRUST (40X51.5X5.00) for Honda Image
Washer, Thrust (40X51.5X5.00)
90507-PRP-000
Honda Honda
MSRP $20.25
$13.97
MSRP $20.25
$13.97
10
90505RCT000 - Transmission - Automatic: WASHER, THRUST (40X51.5X4.90) for Honda Image
Washer, Thrust (40X51.5X4.90)
90505-RCT-000
Honda Honda
MSRP $26.02
$17.95
MSRP $26.02
$17.95
10
90508PRP000 - Transmission - Automatic: WASHER, THRUST (40X51.5X5.05) for Honda Image
Washer, Thrust (40X51.5X5.05)
90508-PRP-000
Honda Honda
MSRP $20.25
$13.97
MSRP $20.25
$13.97
11
90530PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.375) for Honda Image
Washer, Thrust (37X58X4.375)
90530-PRP-000
Honda Honda
MSRP $20.03
$13.82
MSRP $20.03
$13.82
11
90512PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X3.925) for Honda Image
Washer, Thrust (37X58X3.925)
90512-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90527PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.300) for Honda Image
Washer, Thrust (37X58X4.300)
90527-PRP-000
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90513PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X3.950) for Honda Image
Washer, Thrust (37X58X3.950)
90513-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90519PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.100) for Honda Image
Washer, Thrust (37X58X4.100)
90519-PRP-010
Honda Honda
MSRP $20.81
$14.35
MSRP $20.81
$14.35
11
90515PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.000) for Honda Image
Washer, Thrust (37X58X4.000)
90515-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90525PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.250) for Honda Image
Washer, Thrust (37X58X4.250)
90525-PRP-000
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90517PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.050) for Honda Image
Washer, Thrust (37X58X4.050)
90517-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90514PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X3.975) for Honda Image
Washer, Thrust (37X58X3.975)
90514-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90529PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.350) for Honda Image
Washer, Thrust (37X58X4.350)
90529-PRP-000
Honda Honda
MSRP $20.03
$13.82
MSRP $20.03
$13.82
11
90524PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.225) for Honda Image
Washer, Thrust (37X58X4.225)
90524-PRP-000
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90516PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.025) for Honda Image
Washer, Thrust (37X58X4.025)
90516-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90523PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.200) for Honda Image
Washer, Thrust (37X58X4.200)
90523-PRP-000
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90521PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.150) for Honda Image
Washer, Thrust (37X58X4.150)
90521-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90520PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.125) for Honda Image
Washer, Thrust (37X58X4.125)
90520-PRP-010
Honda Honda
MSRP $20.81
$14.35
MSRP $20.81
$14.35
11
90511PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X3.900) for Honda Image
Washer, Thrust (37X58X3.900)
90511-PRP-010
Honda Honda
MSRP $20.94
$14.46
MSRP $20.94
$14.46
11
90528PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.325) for Honda Image
Washer, Thrust (37X58X4.325)
90528-PRP-000
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90522PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.175) for Honda Image
Washer, Thrust (37X58X4.175)
90522-PRP-010
Honda Honda
MSRP $18.94
$13.06
MSRP $18.94
$13.06
11
90518PRP010 - Transmission - Automatic: WASHER, THRUST (37X58X4.075) for Honda Image
Washer, Thrust (37X58X4.075)
90518-PRP-010
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
11
90526PRP000 - Transmission - Automatic: WASHER, THRUST (37X58X4.275) for Honda Image
Washer, Thrust (37X58X4.275)
90526-PRP-000
Honda Honda
MSRP $20.83
$14.38
MSRP $20.83
$14.38
12
90621PRP000 - Transmission - Automatic: CIRCLIP (OUTER) (32MM) for Honda Image
Circlip (Outer) (32MM)
90621-PRP-000
Honda Honda
MSRP $8.34
$5.75
MSRP $8.34
$5.75
13
91021PRP013 - Transmission - Automatic: NEEDLE, THRUST (40X53X2.5) for Honda Image
Needle, Thrust (40X53X2.5)
91021-PRP-013
Honda Honda
MSRP $21.82
$15.05
MSRP $21.82
$15.05
14
91022PRP003 - Transmission - Automatic: NEEDLE, THRUST (46.6X59.5X2.5) for Honda Image
Needle, Thrust (46.6X59.5X2.5)
91022-PRP-003
Honda Honda
MSRP $25.82
$17.81
MSRP $25.82
$17.81
15
91027PRP003 - Transmission - Automatic: NEEDLE, THRUST (37X57X2.5) for Honda Image
Needle, Thrust (37X57X2.5)
91027-PRP-003
Honda Honda
MSRP $21.27
$14.67
MSRP $21.27
$14.67
16
91028PRP003 - Transmission - Automatic: BEARING, NEEDLE (37X43X33.5) (ROLLER QTY 24) (NTN) for Honda Image
Bearing, Needle (37X43X33.5) (Roller Qty 24) (Ntn)
91028-PRP-003
Honda Honda
MSRP $27.62
$19.06
MSRP $27.62
$19.06
17
91105PRP005 - Transmission - Automatic: BEARING, NEEDLE (40X47X16) (NSK) for Honda Image
Bearing, Needle (40X47X16) (Nsk)
91105-PRP-005
Honda Honda
MSRP $26.33
$18.17
MSRP $26.33
$18.17
18
91106PRP025 - Transmission - Automatic: BEARING, NEEDLE (40X46X20.5) (NSK) for Honda Image
Bearing, Needle (40X46X20.5) (Nsk)
91106-PRP-025
Honda Honda
MSRP $26.80
$18.49
MSRP $26.80
$18.49
19
91316PR9003 - Transmission - Automatic: O-RING (33X1.9) (ARAI) for Honda Image
O-Ring (33X1.9) (Arai)
91316-PR9-003
Honda Honda
MSRP $4.73
$3.27
MSRP $4.73
$3.27
20
91326P4V004 - Transmission - Automatic: O-RING (26.7X1.9) (ARAI) for Honda Image
O-Ring (26.7X1.9) (Arai)
91326-P4V-004
Honda Honda
MSRP $4.73
$3.27
MSRP $4.73
$3.27
